Hawke AIRMAX 30 SF COMPACT 4-16X44 AMX IR RETICLE

€39500

Specialist scopes designed by airgunners for airgunners!

Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

Uitverkocht

Toevoegen aan verlanglijst
Artikelnummer: HAW-HALU20A Categorie: Product ID: 8964

Beschrijving

  • Capped Target Turrets
  • 30mm Mono-Tube Chassis
  • Wide Angle
  • Side Focus
  • Illumination
  • 16 Layer Fully Multi-Coated Lenses
  • High Torque Zoom Ring
  • Fast Focus Eyebell
  • AMX Reticle Designed For Airguns

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke Warranty

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

  • MORE RETICLE INFORMATION
Line Drawing
  • SUPPLIED WITH
  • Box
  • Instruction Manual
  • Reticle Booklet
  • Lens Cloth
  • Lens Covers
  • 3″ Sidewheel
  • CR2032 Battery

DOWNLOADS

Instruction Manual

PDF 0.5MB
Reticle Booklet

PDF 0.5MB
Objective Lens: 44mm
Reticle: AMX IR
Parallax: Side Focus
Magnification: 4 – 16x
Optical System: System H2
Focal Plane: SFP (Second Focal Plane)
Scope Tube: 30mm
Illumination: 6 Levels with Off Positions In-between – Red
Field of View: 32.8 – 8.2ft @100yds / 10.9 – 2.7m @100m
Field of View: 6.2 – 1.6°
Eye Relief: 3in / 76mm
PX/Focus (Error free from): 10yds – ∞ / 9m – ∞
Exit Pupil: 0.43 – 0.11″ / 11 – 2.8mm
Turret Type: Target
Turret Caps: YES
Click Value: 1⁄ 10MRAD
Elevation Turret Clicks (max): 20 MRAD
Windage Turret Clicks (max): 20 MRAD
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Lens Coating: Fully Multi-Coated – 16 Layers
Length: 11.7″ / 296mm
Weight: 21.9oz / 621g

COMPATIBLE WITH

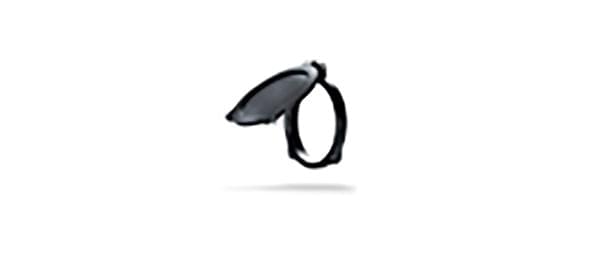

61 007
Flip-Up Cover (Metal)
44mm
Objective
Flip-Up Cover - Objective (44mm)
61 050
Flip-Up Cover (Metal)
Size 1
Ocular
Flip-Up Cover - Ocular Size 1

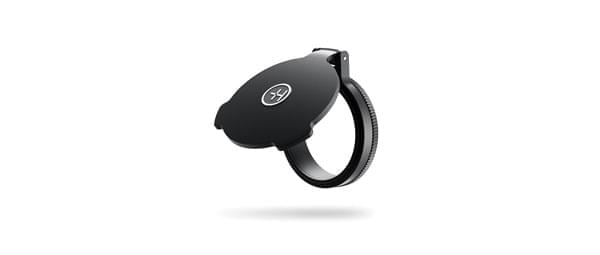

61 107
Pro Flip-Up Cover (Metal)
44mm
Objective
Professional Flip-Up Cover - Objective (44mm)

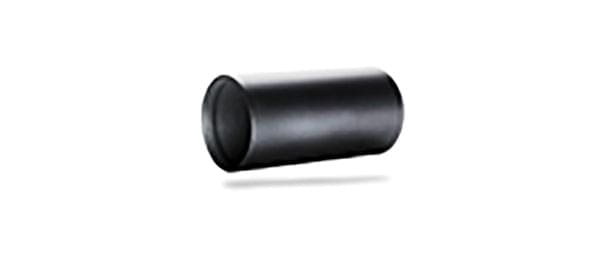

62 007
Sun Shade
44mm
Sunshade - Objective (44mm)

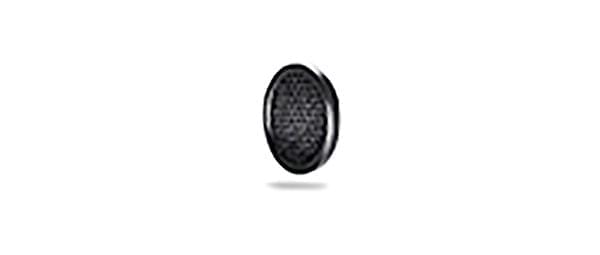

62 107
Sun Shade : Honeycomb
44mm
Honeycomb Sunshade - Objective (44mm)

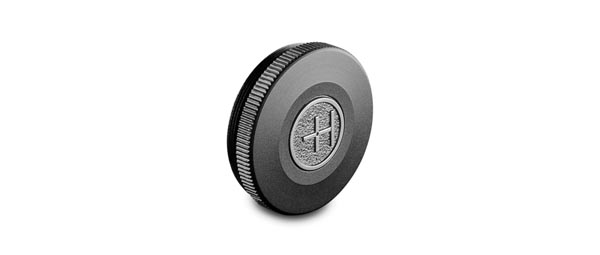

97 300
Replacement Battery Cap (Hawke Logo)Included with

Airmax 30 SF Compact 4-16×44 AMX IR

Riflescopes
Replacement Riflescope Battery Cap - Hawke Logo

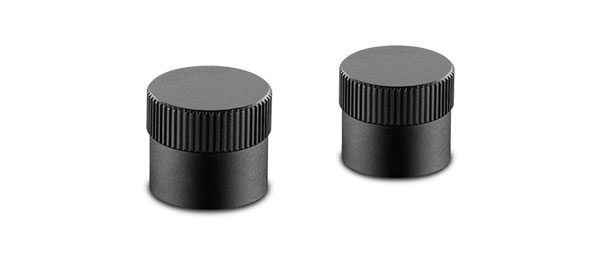

97 314
Replacement Turret CapsIncluded with

Airmax 30 SF Compact 4-16×44 AMX IR

Type 05
Airmax 30 Compact
Riflescope Type 05 Turret Caps - Airmax 30 Compact

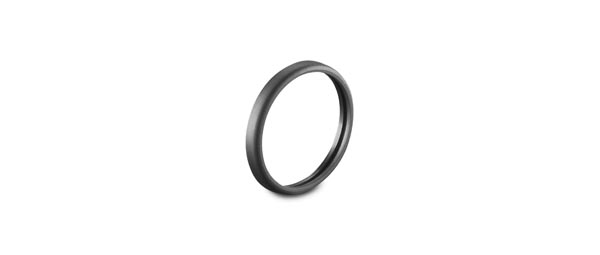

97 376
Replacement Rubber EyecupIncluded with

Airmax 30 SF Compact 4-16×44 AMX IR

–
Airmax 30 SF Compact
Replacement Riflescope Ocular Rubber Eyecup Airmax 30 SF Compact

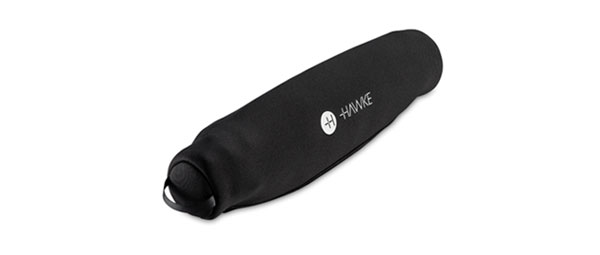

99 212
Neoprene Scope Cover
Black
13″ / 33cm
Neoprene Scope Cover 13”
