Description
Magnification | 1-6x |
---|---|
Objective Lens Diameter | 24 mm |
Reticle | AR-BDC3 |
Turret Style | Capped |
Tube size | 30 mm |
Adjustment Graduation | 1/4 MOA |
Parallax Setting | 100 yds |
Max Windage Adjustment | 140 MOA |
Max Elevation Adjustment | 140 MOA |
Travel Per Rotation | 25 MOA |
Field of View | 126′-20.2′ |
Eye Relief | 3.7″ |
Length | 10.3″ |
Weight | 19.5 oz |
Second Focal Plane | Consistent large reticle |
---|---|
Illuminated Reticle | Provides fast target acquisition in any lighting scenario |
Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
The illuminated, glass-etched AR-BDC3 is specifically tuned to the ballistic performance of common 5.56 loads out of an AR-15. The 1 MOA centre dot provides a precise point of aim while the surrounding 16.625 MOA broken circle gets your eye into the centre faster for rapid target acquisition, and the BDC keeps you on target out to 650 yards.
Subtension detail for Venom 1-6×24 riflescope with AR-BDC3 reticle.

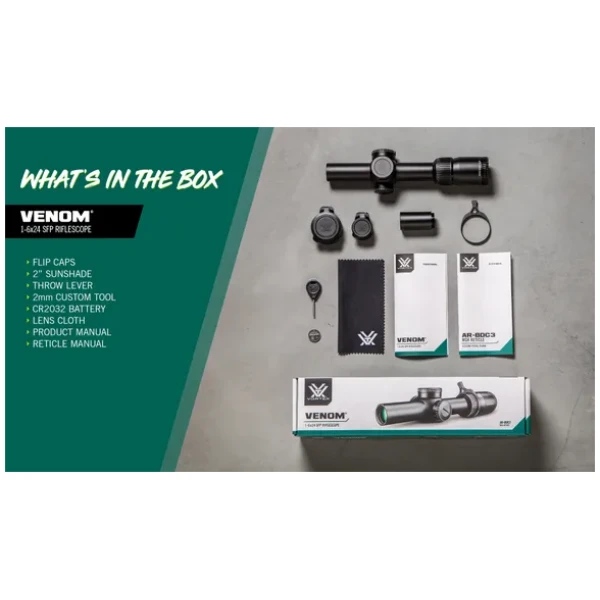

INCLUDED IN THE BOX
- Sunshade
- Throw Lever
- Lens Covers
- Lens Cloth
- CR2032 Battery
- 2mm Hex Wrench
VENOM® 1-6X24 SFP & 3-15X44 FFP RIFLESCOPES - PRODUCT OVERVIEW
