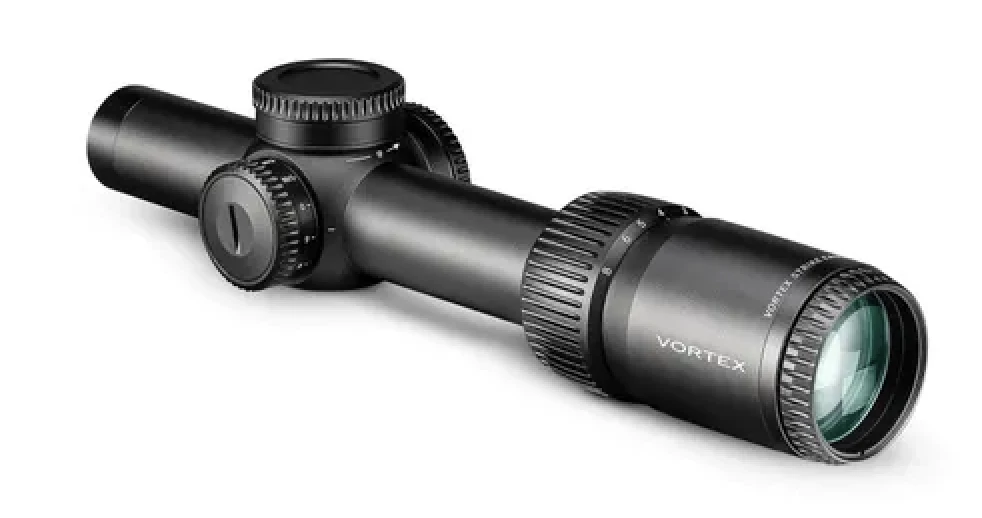

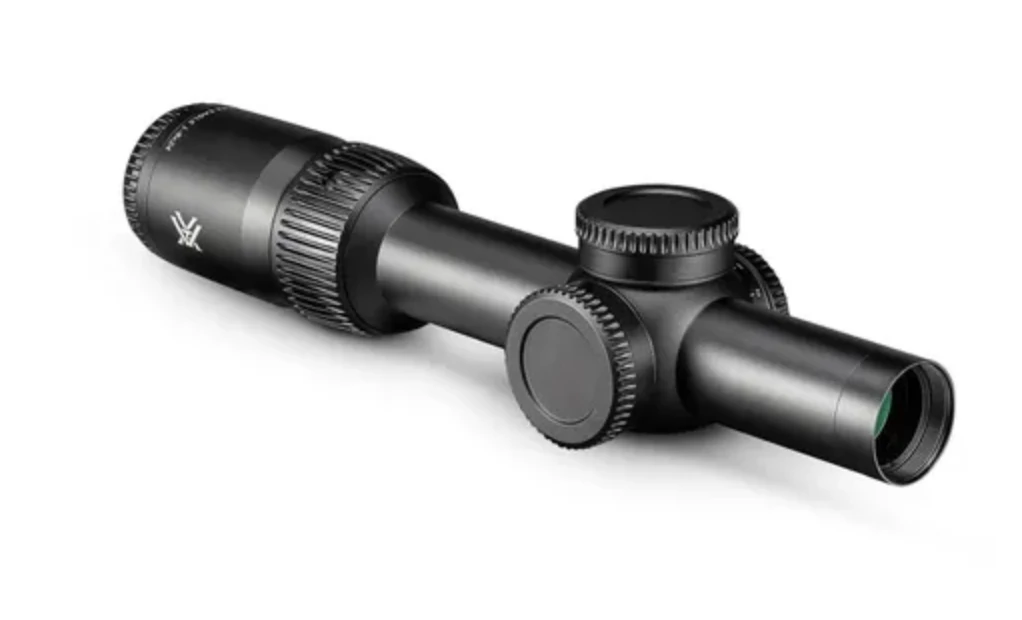

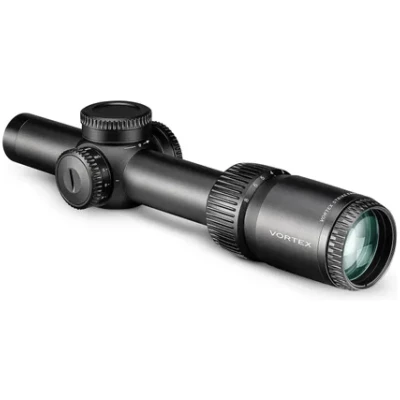

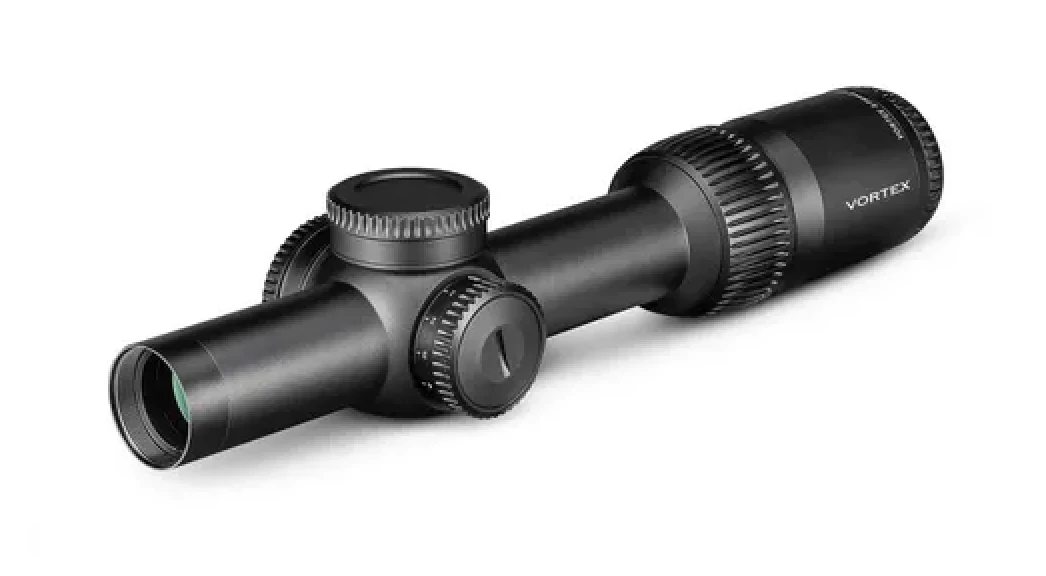

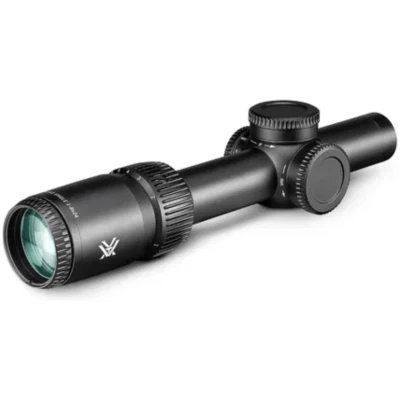

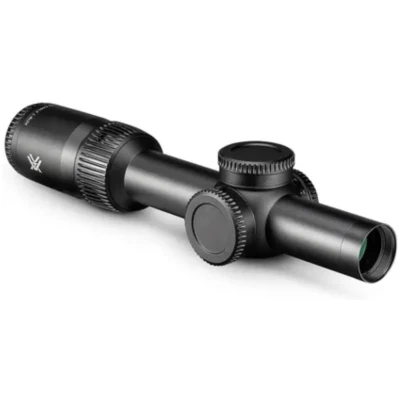

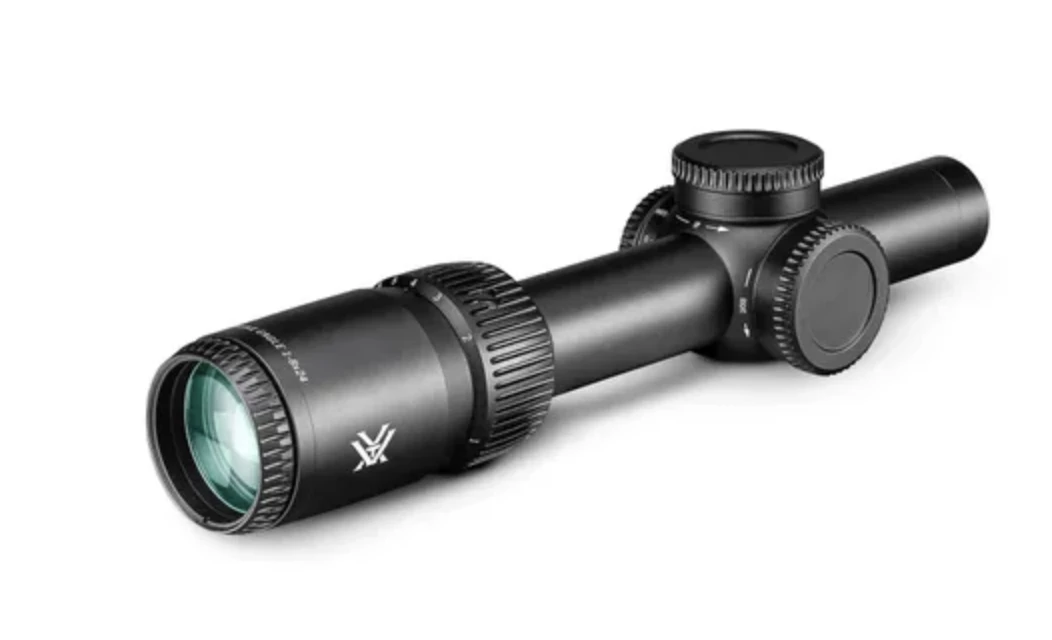

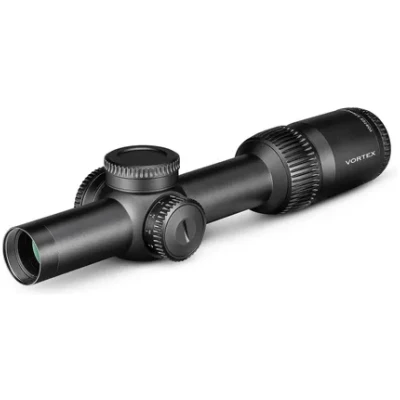

Description
| Magnification | 1-8x |
|---|---|
| Objective Lens Diameter | 24 mm |
| Reticle | EBR-8 (MOA) |
| Eye Relief | 3.9 inches |
| Turret Style | Capped |
| Tube size | 30 mm |
| Adjustment Graduation | 1/4 MOA |
| Parallax Setting | 125 yds |
| Max Windage Adjustment | 145 MOA |
| Max Elevation Adjustment | 145 MOA |
| Travel Per Rotation | 25 MOA |
| Length | 10.4 inches |
| Weight | 23.9 oz |
| Field of View | 113.6-14.1 ft/100 yds |
| Lengths | |||||
|---|---|---|---|---|---|
| L1 | L2 | L3 | L4 | L5 | |
| 10.4 | 1.9 | 2.5 | 6.0 | 3.8 | |
| Heights | |
|---|---|
| H1 | H2 |
| 1.18 | 1.89 |
| Aluminum Grade | Aircraft |
|---|---|
| ArmorTec® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
| Multi-Coated | Fully Multi-Coated |
| Shockproof | Rugged construction withstands recoil and impact. |
| Throw Lever | The included throw lever can be installed for quick and easy magnification adjustments. |
EBR-8 RETICLE
Our exclusive EBR-8 MOA first focal plane, glass-etched, illuminated reticle facilitates rapid shooting from point blank out to 600 yards with popular .223/5.56mm and .308/7.62mm loads. This reticle also can be used with a wide variety of other calibres and loads using the BDC hashmarks.
Subtension detail for the Strike Eagle 1-8×24 FFP riflescope with EBR-8 MOA reticle.
INCLUDED IN THE BOX
- Throw Lever
- Flip Caps
- Lens Cloth
- Sunshade
- CR2032 Battery
- 2mm Hex Wrench
