Description
Included in Package

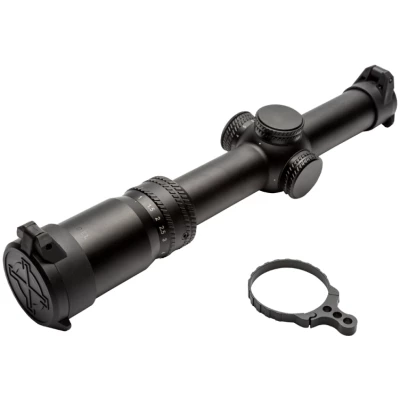

- Flip up lens covers
- Throw lever attachment
- CR2032 battery
Batteries Used
- Type: CR2032
- Quantity: 1
Product downloads
Features
- 10:1 Zoom ratio
- Capped low profile turrets
- Second focal plane reticle
- Single piece 30mm tube
- Aircraft grade aluminium
- Hard anodised finish
- Shockproof / fogproof / waterproof
- Fully multi-coated optics
| Reticle | Etched glass |
|---|---|
| Reticle, Type | HDR |
| Reticle, Colour | Red |
| Reticle, Illuminated | Yes |
| Reticle Brightness Setting | 0-11 |
| Magnification | 1-10 x |
| Diameter, Objective Lens | 24 mm |
| Diameter, Eyepiece | 1.6 / 40 in / mm |
| Diameter, Exit Pupil | 11.15 - 2.2 mm |
| Field of view, m@100m | 36.76 – 3.6 |
| Field of view, ft@100yd | 110.3 – 10.8 |
| Diopter Adjustment | +2 to - 2 |
| Eye relief (in/mm) | 3.7 – 3.1 / 93.98 – 78.74 |
| Tube dimensions (in/mm) | 1.18 / 30 |
| Parallax Setting | 100 yds |
| MOA Adjustment | 1/2 MOA one click = |
| Elevation Range of Adjustment | 100 MOA |
| Windage Range of Adjustment | 100 MOA |
| Windage & Elevation, Lock | No |
| Finish/Color | Matte black |
| Body Material | Aluminium |
| Maximum Recoil | 50 BMG |
| Shockproof | Yes |
| Fog Proof | Yes |
| Lens Coating | Fully multi-coated |
| Battery Type | CR2032 |
| Battery life, hours | 70 – 100 |
| Battery Voltage, V | 3 |
| Weight, oz | 17.5 |
| Focal Plane | 2nd |
| Operating Temp,?F/?C | 0 to 120 / -17 to 49 |
| Sunshade | No |
| IP Standard | IP67 - waterproof and dustproof |
| Nitrogen Filled | Yes |
| Length (in/mm) | 11.26 / 286 |
| Width (in/mm) | 2.2 / 58 |
| Height (in/mm) | 1.7 / 42 |
